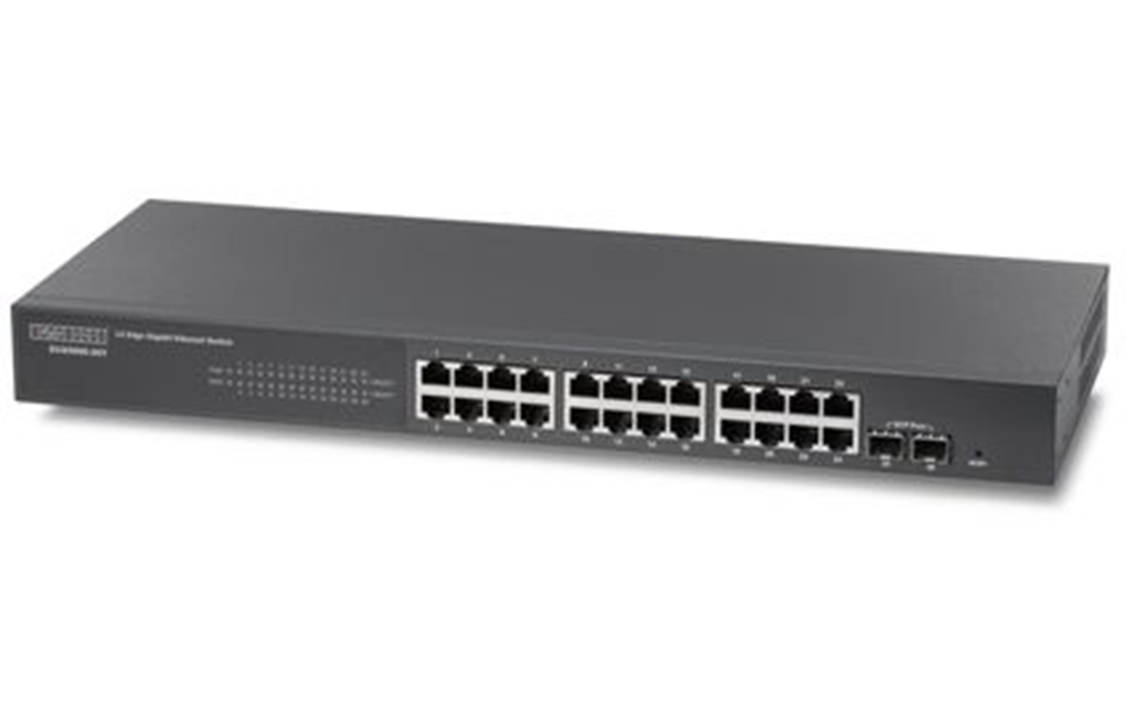

Коммутатор Edge-Core ECS2000-26T
Описание
Edge-Core ECS2000-26T имеет 26 порта 10/100/1000Base-T и 2 слота 100/1000Base-X для SFP модулей. Основное предназначение - подключение рабочих станций на скорости 1 Gbps в сетях SMB (Server Message Block).
Расширенная функция QoS с поддержкой классификации и приоритетов.
Технические характеристики
- 24 порта RJ-45 10/100/1000
- 2 слота 100/1000Base-X SFP
| Основные функции | |
| Description | 24 10/100/1000BASE-T RJ-45; 2 GE SFP slots |
| Физические параметры | |
| Dimension (HxWxD) cm | 4.45 x 44 x17.3 |
| Flash Memory | 16MB |
| Out-of-Band Management | Console Port |
| Packet Buffer | 512KB |
| SDRAM for CPU | 128MB |
| Weight (kg) | 1.91 |
| Производительность | |
| Forwarding Rate | 38.7Mpps |
| MAC Address Table Size | 8K |
| Switching Capacity | 52Gbps |
| Функции L2 | |
| Auto MDI/MDIX | Yes |
| Autonegotiation | Yes |
| Flow Control | Yes |
| IGMP Snooping | v1 | v2 | v3 |
| Immediate Leave | Yes |
| Jumbo Frame | Yes |
| Link Aggregation | IEEE 802.3ad with LACP (Dynamic) |
| Spanning Tree | IEEE 802.1D (STP) | IEEE 802.1w (RSTP) | Auto Edge Port |
| Storm Control | Broadcast | Multicast | Un-known Unicast |
| VLAN | IEEE 802.1Q Tagged Based | Private VLAN | Port Based | Voice VLAN |
| VLAN Group | 4K |
| QoS Features | |
| CoS | IEEE 802.1p | IP Precedence | DSCP | TCP/UDP |
| H/W Queues | 8 |
| Priority Queue Scheduling | WRR | Strict Priority | Hybrid |
| Rate Limiting | Ingress | Egress |
| Функции безопасности | |
| ACL L2/L3/L4 | Yes |
| HTTP and SSL ( Secured Web) | Yes |
| IEEE 802.1x | Port-based | MAC-based | VLAN Assignment | Guest VLAN |
| IP Source Guard | Yes |
| MAC Filter | Yes |
| Port Security (MAC Based) | Static | Dynamic |
| RADIUS (RFC2138) | Authentication | Accounting |
| SSH v1.5/ v2.0 (Secured Telnet Session) | Yes |
| TACACS+ | Accounting |
| Username/Password Authentication | Local | Remote |
| Функции управления | |
| Cable Diagnostic | Yes |
| CLI | Yes |
| DHCP | Client | Relay | Option 82 | Snooping |
| DNS | Client | Proxy |
| Event/ Error Log | Local Flash | Remote Server via System Log (RFC3164) |
| LLDP | Yes |
| Port Mirroring | One to One |
| Yes | |
| RMON | RMON I (1,2,3 & 9 groups) |
| SNMP (Agent) | v1 | v2c | v3 |
| SNTP | Yes |
| Telnet (RFC854) | Yes |
| Web Based Management | Yes |
| Web Interface | Yes |
| Функции IPv6 | |
| ICMPv6 | Yes |
| ICMPv6 Redirect | Yes |
| IPv4/IPv6 Dual Protocol Stack | Yes |
| IPv6 Address Types | Unicast |
| IPv6 Management | SNMP over IPv6 | Remote IPv6 Ping | HTTP over IPv6 | DHCP IPv6 |
| IPv6 Neighbor Discovery | Yes |
| Stateless Auto-configuration | Yes |
| * represents future release The listed specification is subject to change without prior notice. |
|
